product details / scope of delivery

Description:

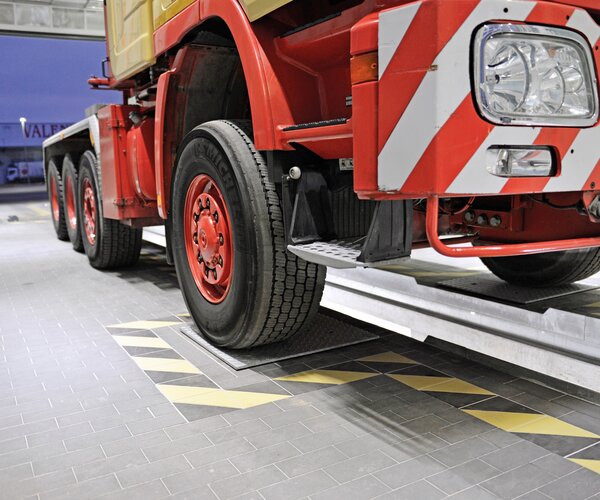

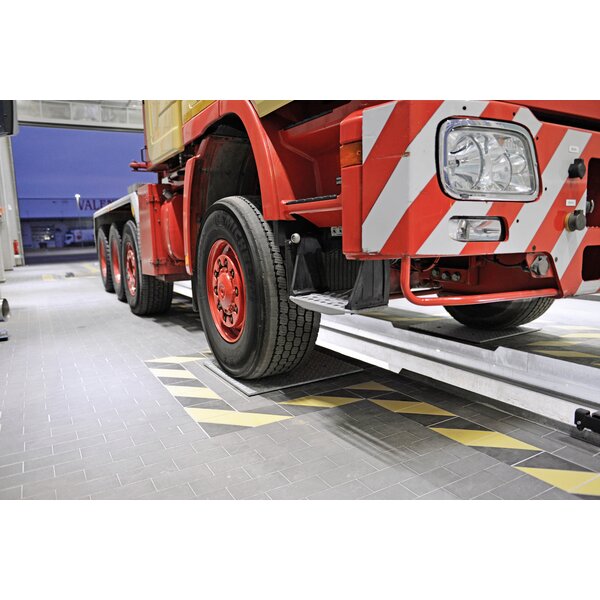

  • Rapid determination of defects and wear and tear on steering parts, wheel bearings, spring system and suspension
  • Powerful and even movement thanks to hydraulic drive
  • Low-noise oil-submerged hydraulic unit
  • Slide bearings and particularly robust chrome-plated circular guides
  • Extremely robust and low-maintenance design with optimum service life

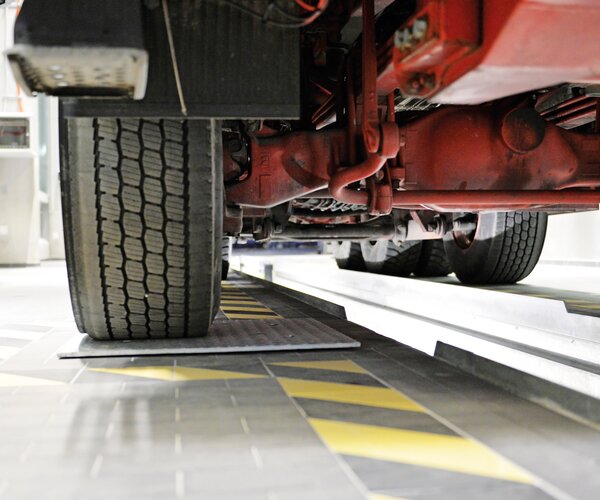

  • Counter-set cross and longitudinal movement of the test plates
  • One-hand operation without lifting the vehicle

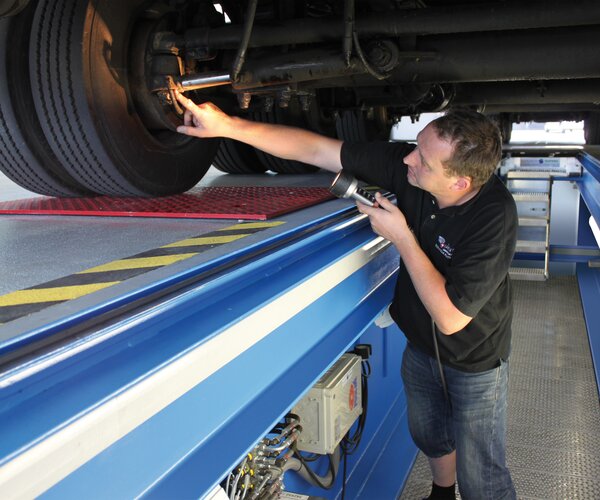

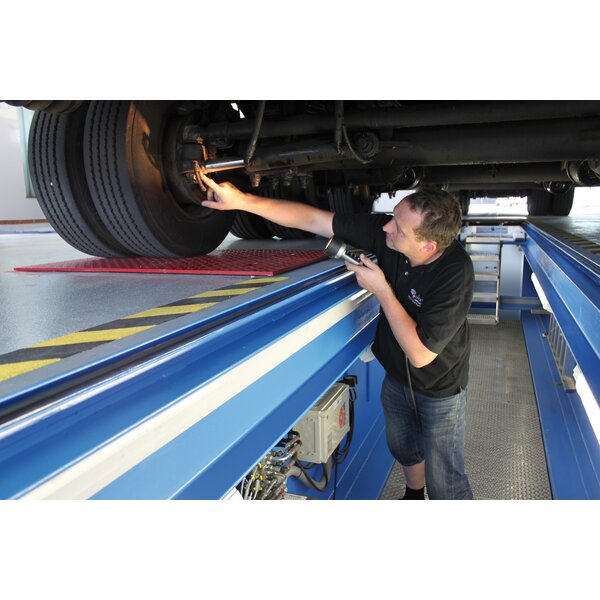

  • Wireless radio inspection light with LED for performing and controlling the test plate movements
  • Different operating modes including automatic mode
  • Compliant with directive 2014/45/EU


  • Optional: additional different test plate movements
  • Optional: aluminium cable inspection light


Scope of delivery:

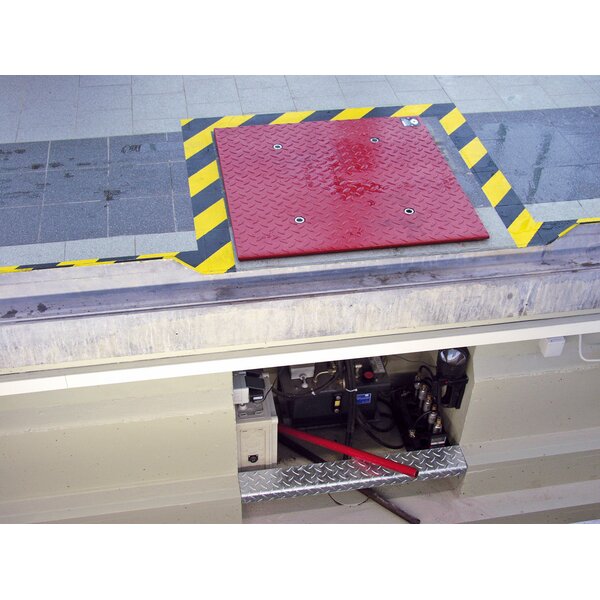

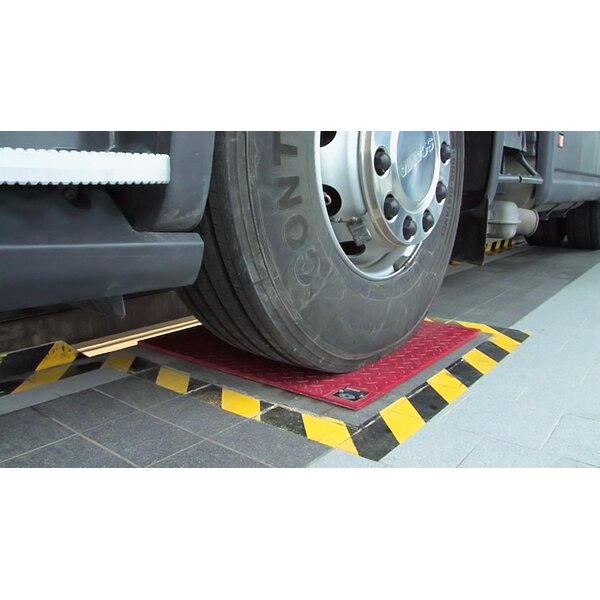

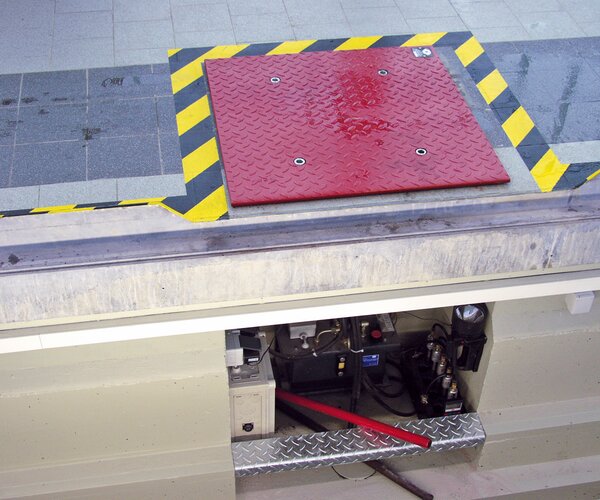

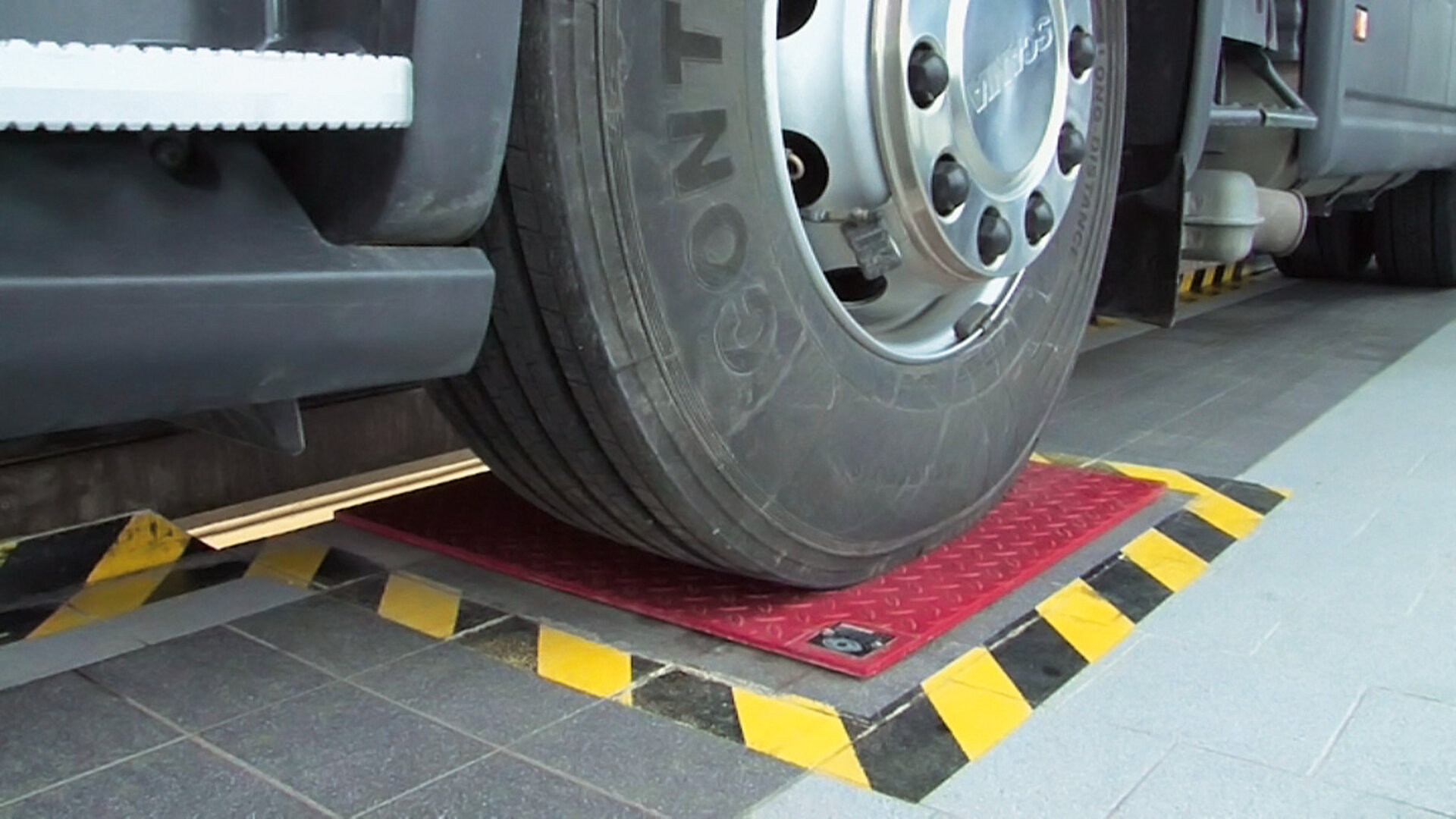

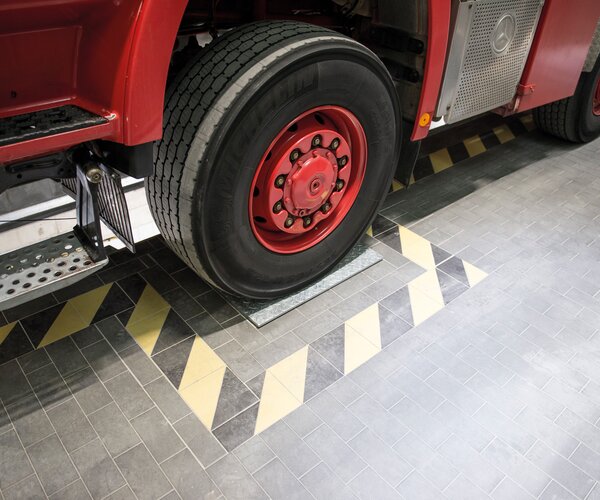

  • 2 pieces test plates
  • Electrical control box

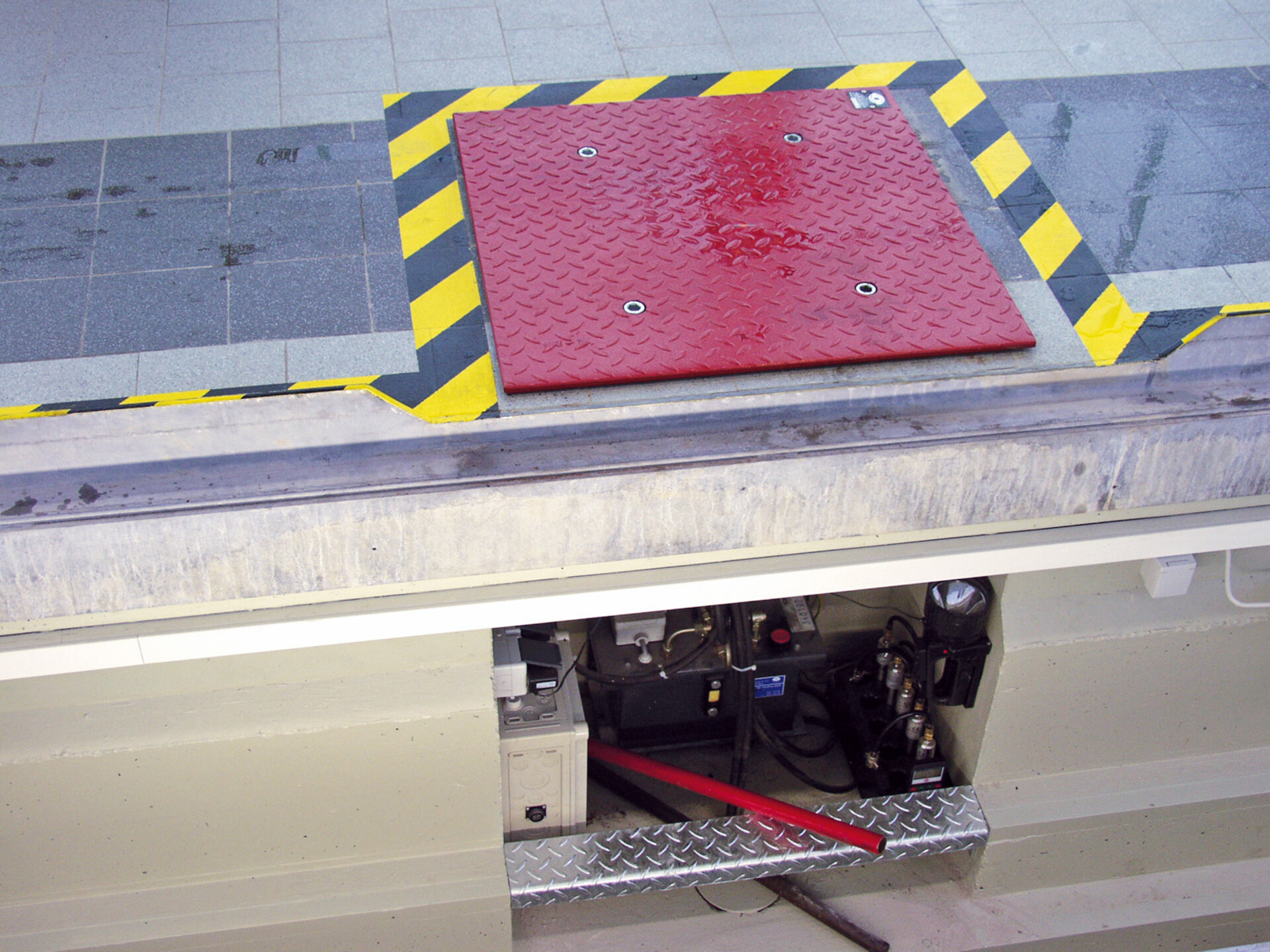

  • Hydraulic power unit
  • Radio inspection light with charger and power supply unit
  • Operating manual

-EC Declaration of Conformity CE

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Max. axle load20000 kg
Max. wheel load10000 kg
Test plate movement104mm
Test plate speed50 mm/s
Dimensions of test plate (L x W x H)740 x 740 x 10 mm
Installation depth260 mm
Max. thrust per side30 kN
Drive power2.5 kW
Operating pressure120 bar
Power supply3/N/PE 400 V 50 Hz
Fuse gG16 A
Hydraulic oil volume (not included)25 l
