product details / scope of delivery

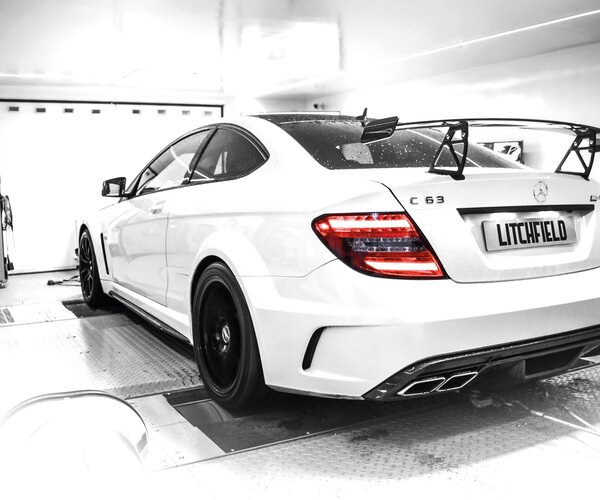

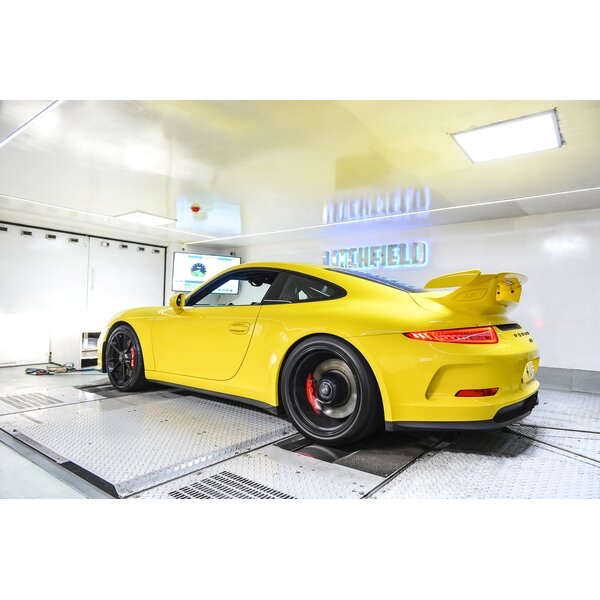

Four-wheel drive single roller dynamometer for cars with axle
load of up to 2.4 t, includes an eddy-current brake and an
electric motor per roller set, pre-configured for 3rd/4th
eddy-current brake, ideally suited for performance
measurements, tuning and diagnostic work in very powerful
vehicles

  • Test speeds of up to 300 km/h
  • Tyre rolling action as it would be on the road
  • Tyres are preserved as a result of limited flexing action
  • Simple restraining mechanism for quick vehicle fixation
  • Electronically-controlled synchronisation of the speed of the front and rear roller set for current and future drive concepts with active power distribution


High level of flexibility in use due to extensive variety of
operating modes, covering all fields of application:

  • Static power measurement at constant RPM
  • Static power measurement at constant speed
  • Static power measurement at constant tractive force
  • Dynamic power measurement with adjustable acceleration
  • MAHA towing power measurement guarantees the highest degree of accuracy when measuring power: Precision calculation of the parasitic losses of the dynamometer, of the vehicle's drive train and the tyre to roller friction and flex losses
  • Tachometer testing with up to ten freely selectable test points
  • Distance measurement included
  • Stopwatch function for measurement of acceleration between optional speed markers as standard
  • Optional load simulation with freely programmable load profile
  • Optional driving simulation with freely programmable speed profile
  • Option of storing programmed profiles in database


Professional, intuitive-use software for the highestexpert
standards with:

  • continuous graphic display and recording of up to 16 freely selectable parameters per performance measurement cycle on one measurement screen.
  • In addition to the current performance measurement cycle, fade-in of up to three stored cycles on the measurement screen for optimum comparability during calibration work
  • Two circular dial displays for RPM and speed as well as current oil temperature display, ensuring constant control of keyparameters during performance measurement
  • Determination of wheel power, power dissipation, engine power and torque
  • Standardised extrapolation of motor power in line with DIN 70020, EEC 80/1269, ISO 1585, JIS D 1001 and SAE J 1349 (configuration-dependent)


  • Circular dial display of motor power, RPM, speed and tractive force during simulation cycles
  • Colour-highlighted user prompts integrated within the circular dial facilitate the accurate reproductionof simulation cycles
  • With radio remote control as standard for complete control of the dynamometer from within the vehicle.
  • Radio remote control with long-life battery and charging station
  • Cooling fan switched on and off either at the control console or with the radio remote control


  • With interface box including stand and long connection cable as standard for optimum placement at the dynamometer with MAHA plug-in CAN-DRZ module card for connecting RPM

sensor.

  • Interface box optionally upgradeable with MAHA plug-in card for comprehensive recording of external Ambient data such as air temperature, air pressure, rel. humidity and intake temperature
  • Interface box optionally upgradeable with MAHA plug-in analogue input module card with 4 sensor inputs for temperature and pressure sensors or lambda sensors.
  • Optional connection of MAHA MGT 5, MDO 2 LON and MET SERIES emission testers
  • Optional connection ofKrupp/AIC fuel consumption measuring instruments for petrol- and diesel engines


MCD 2000 Communication Desk Description

  • Robust and multifunctional metal encasement
  • Integrated switch cabinet for housing electronic components
  • Lockable drawer for keypad and PC mouse and storage compartment for small items of equipment
  • VESA standard bracket for holding the all-in-one PC or PC monitor
  • Can be extended with optional PC storage compartment or side shelves
  • Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016, (side faces)


MCD 2000 Standard Delivery

  • MCD 2000 Communication Desk
  • interface box 1 including stand and connection cable with plug-in environment module (CAN-PTH module) card for recording air temperature, air pressure, humidity with plug-in RPM module (CAN-DRZ module) card for RPM recording via trigger clamp, light signal sensor, piezo clamp, clamp W

and TDC sensor (insertion of max. 4 modules per box

  • possible)
  • Radio remote control for dynamometer operation with battery and charging station
  • Cooling fan control
  • Measuring program


MSR 500/2 CAR 4WD Roller Set pre-configured for 3./4.
eddy-current brake

Description:

  • Electronically-controlled synchronisation of the speed of the front and rear roller set
  • Electric motor in the centre of the roller set
  • Eddy-current brake on the right for each roller set
  • Cover and sliding plates, gentian blue RAL 5010
  • Hydraulic power unit with self-locking cylinder
  • Axle distance adjustment via radio remote control (Standard version: rear roller is movable)
  • Optional 30 kW electric motors instead of 22kW for synchronisation of front and rear roller set speed
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Roller Set Standard Delivery:

  • Self-supporting closed roller set with an eddy-current brake for thefront axle and electric motor
  • Self-supporting closed roller set with an eddy-current brake for the rear axle and electric motor
  • Front and rear roller set with second eddy-current brake encasement in preparation for retrofitting of the 3rd and/or 4th eddy-current brake
  • Hydraulic roller set adjustment with sliding plate set for 4WD floor unit with four eddy-current brake encasements
  • Converter cabinet for electric motor control

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Communication Desk Technical Data

Desk dimensions (H x W x T)1560 x 860 x 420 mm
Power supply3/N/PE 400 V 50 Hz
gG fuse63 A
Weight including packagingapprox. 150 kg
Converter cabinet
dimensions (H x W x D)1000 x 800 x 400 mm


Roller Set Technical Specifications

Axle load2500 kg
Weightapprox. 1300 kg
Rotating mass per roller setapprox. 280 kg
Min. track700 mm
Max. track2200 mm
Roller diameter504 mm
Roller set dimensions (L x W x H)1095 x 4100 x 512 mm
Dynamometer
dimensions (L x W x H)4300 - 5400 x 4100 x 512 mm
Max. air pressure7 bar
test speed300 km/h
Max. (static) rear axle wheel power260 kW
(dynamic) peak> 1000 kW
Max. (static) front axle wheel power260 kW
(dynamic) peak> 1000 kW
Max. rear axle tractive force6 kN
Max. front axle tractive force6 kN
Measurement accuracy
Wheel power measurement+/- 2% from measured value
2 electric motors each with a drive power rating of22 kW
Trailing axle: maximum speed approx.210 km/h
Trailing axle: maximum acceleration0.8 m/s²
2 electric motors each with a
drive power rating of (optional)30 kW
Trailing axle: maximum speed (optional)approx. 240 km/h
Trailing axle: maximum acceleration (optional)1.5 m/s²
Min. axle distance2200 mm
Max. axle distance3100 mm
Adjustment track900 mm
