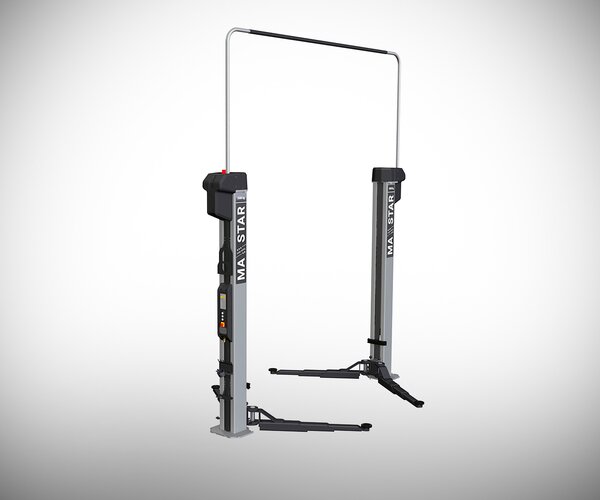

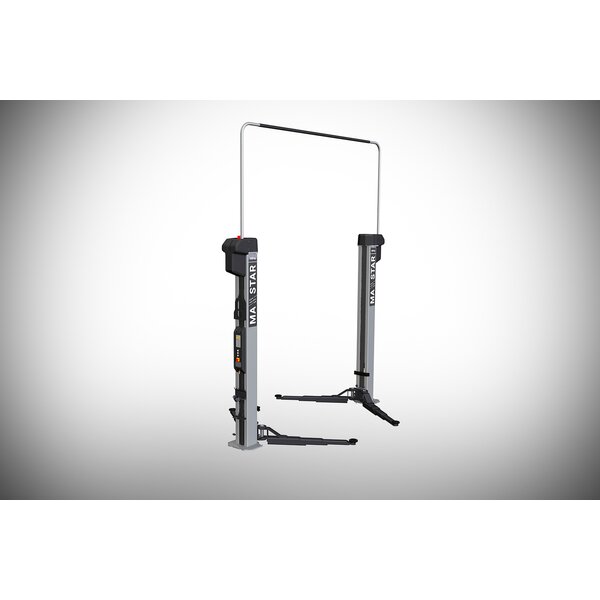

MA STAR 3.5 S VP 251233

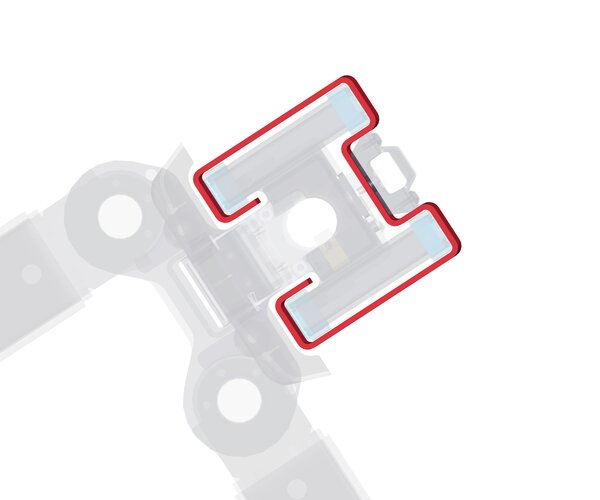

The 5-star lift MA STAR 3.5 A, which features stable torsion-resistant columns of rolled H-section steel, lifts cars and vans of up to 3.5 t. Symmetrical columns ensure that the lift width is kept to a minimum. The two post lift guarantees triple safety thanks to its spindle nut package, patented "giraffe" nut breakage detection and motor brake. The MA STAR also impresses with its straightforward plug and play commissioning as well as its intuitive, LED-based operation.

COMFORT version - options available.

product details / scope of delivery

COMFORT version - options available
(colour/special voltage)

  • RAL 7040 -

Description:

  • Load capacity 3500 kg
  • triple safety
  • Symmetrical columns for small overall width
  • Symmetrical support arms
  • Support arms swivelling 95°
  • Variable installation width
  • High-quality powder coating:
    • Window grey, RAL 7040 (columns)
    • Anthracite grey, RAL 7016 (lifting carriages, support arms)


Scope of delivery:

  • 2 symmetrical columns with operating unit
  • 4 symmetricalsupport arms (4 double telescopic)
  • Support disc plug-in system

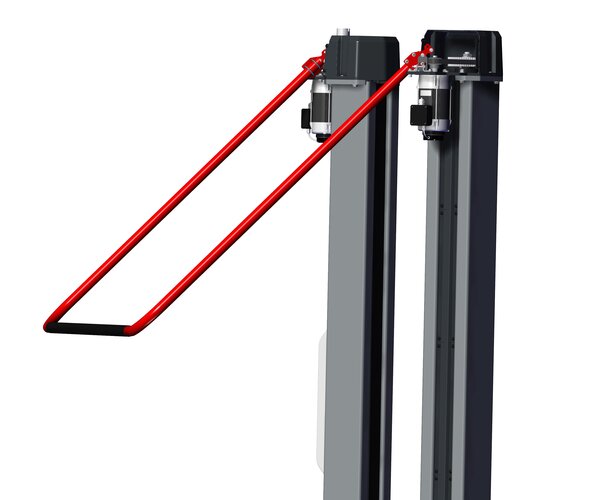

  • Cable bridge
  • Spindle oil (0.5 l)
  • Operating instructions
  • CE Declaration of Conformity
  • Transport packaging


Downloads

Sales documents

Brochures
Brochure MAHA MA-STAR
DE EN
Brochure (Printable version) MAHA MA-STAR print
DE EN
Technical Datasheet
Technical Datasheet MA STAR 3.5 S
DE EN
Technical Datasheet (Printable version) MA STAR 3.5 S
DE EN

Technical documentation

Operating Instructions
Operating Instructions MA STAR 3.5 | 5.5 | 6.5 (Complete version)
DE EN ES FR
Operating Instructions MA STAR 3.5 | 5.5 | 6.5 (Print version for end users)
DE EN ES FR
Product drawings
MA STAR 3.5 S Data sheet, main dimensions
DE EN

Technical Data

Technical data:

Load capacity CE3500 kg
Max. lifting height1995 mm
Lifting / lowering time (load-dependent)approx. 40/40 s
Bottom clearance of the support arms100 mm
Adjustment range, support disc80 - 110 mm
Extension range, support arms630 - 1240 mm
Overall width*3557 mm
Outside base plates*3307 mm
Outside columns*3097 mm
Inside columns*2700 mm
Drive-through width2200 - 2400 mm
Column height2943 mm
Max. overall height (with cable bridge)4499 mm
Drive power2 × 3.0 kW
Power supply3/N/PE 400 V 50 Hz
FuseC16 A
Weight640 kg
Packaging dimensions (L x W x H)2900 x 1100 x 710 mm
Required concrete qualityC 20/25
Required thickness of concrete slab w/o screed min.180 mm

*Dimension based on recommended Drive-through width 2400 mm
