Description:

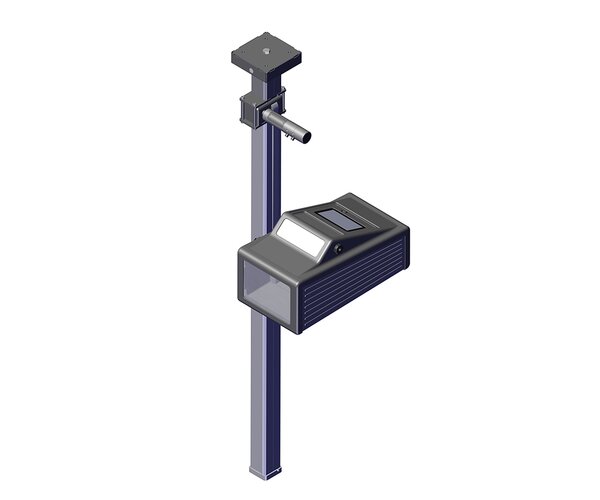

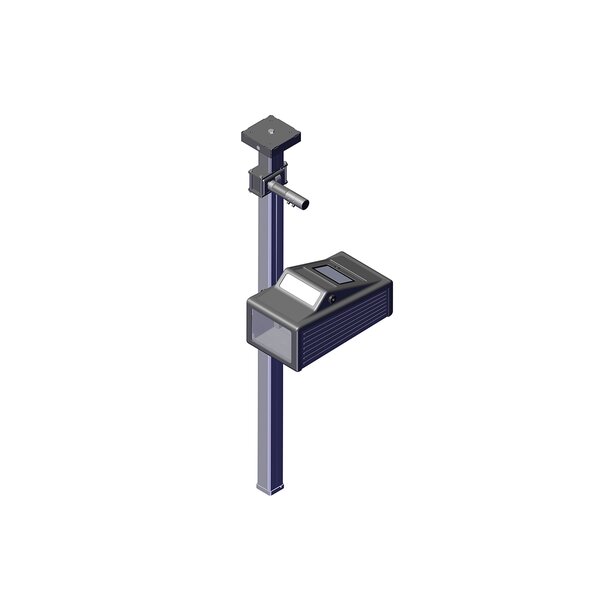

- Portal connection for suspended mounting via the column head
- Digital device for quick and objective testing and adjustment of vehicle headlights, taking into account statutory limits and vehicles manufacturers guidelines
- Capacitive 7 touch screen for menu navigation and display of measurement values
- High dynamic range CMOS camera with special filter for precise capture and digitization of the headlight projection
- Processor-supported unit control incl. flash memory
- Digital analysis with evaluation of results
- Optional interface for transmission of measurements to a PC via Bluetooth oder cable
- Robust construction, also suitable for test lanes

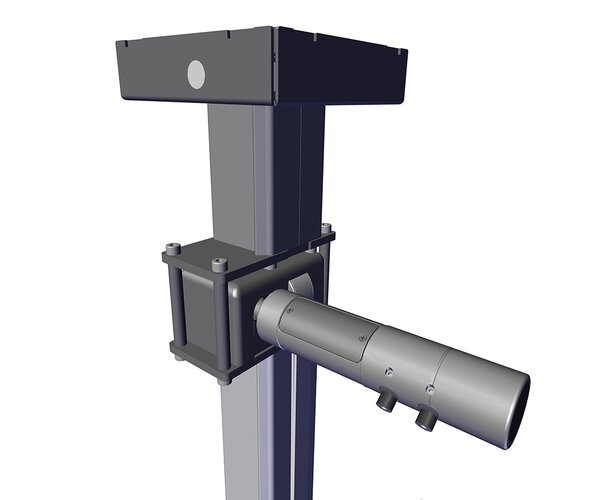

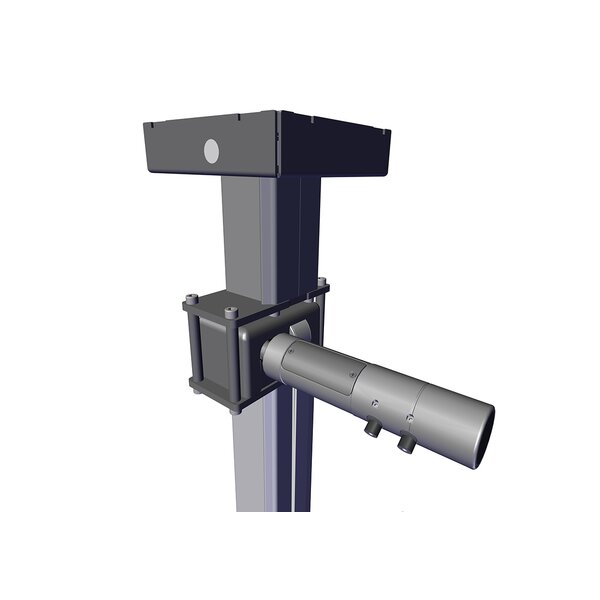

- Pivoting horizontally-oriented laser alignment unit, for positioning the device in relation to the vehicle
- Automatic latching of the light collecting box to the precision aluminium guide column facilitates handling and optimises reproducibility
- Large Fresnel lens for easy positioning in front of the headlights helps speed up the entire set-up process
Note:
No type approval according to VkBl 17/2020 possible in Germany
Downloads
Technical Data
Technical Data:
| Measuring range: | |
| Above hotspot | 0 - 800 mm/10 m (0-8%) |
| Above pitch angle | 0 - 300 mm/10 m (0-3%) |
| Underneath | 0 - 700 mm/10 m (0-7%) |
| Left | 0 - 1000 mm/10 m (0-10%) |
| Right | 0 - 1000 mm/10 m (0-10%) |
| Light intensity | 0 - 125000 cd |
| Illuminance | 0 - 200 lx |
| Measurement distance | 100 - 500 mm |
| Deviation of intensity | +/-5% |
| Deviation from an axle | +/- 5' |
| Temperature range | +5 - +40°C |
| Relative humidity | 20 - 80 % |
| Power supply (mains adapter) | 1/N/PE 100-240 V 50/60 Hz |
| Dimensions (H x W x D) | 1770 x 655 x 720 mm |
| Red line laser | Laser class 2M |
| Wavelength laser | 638 nm |
