product details / scope of delivery

  • Emission tester stands out due to limited weight and compact design
  • Short warm-up time, quick measurement readiness
  • Accurate analysis of gas components HC, CO, CO2, O2 with lambda value calculation
  • Intuitive operation, clearstructure in emissions testing process as set out in current guidelines 5 enable minimum cycle times
  • Varied and simple network connection options LAN / WLAN (optional)
  • The MAHA VCI makes EOBD analysis easy
  • Innovative method for separation of condensed water thanks to active water separator
  • MID type approval
  • Emission testing of CNG, LPG and petrol engines possible
  • Options:
    • W-LAN interface


Scope of delivery:

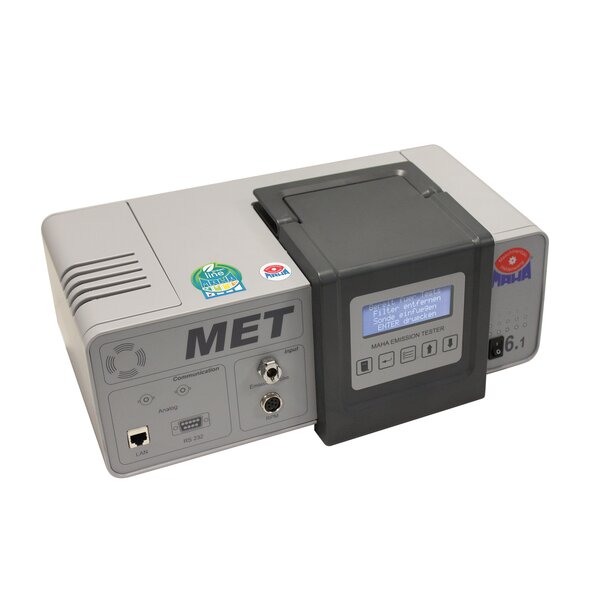

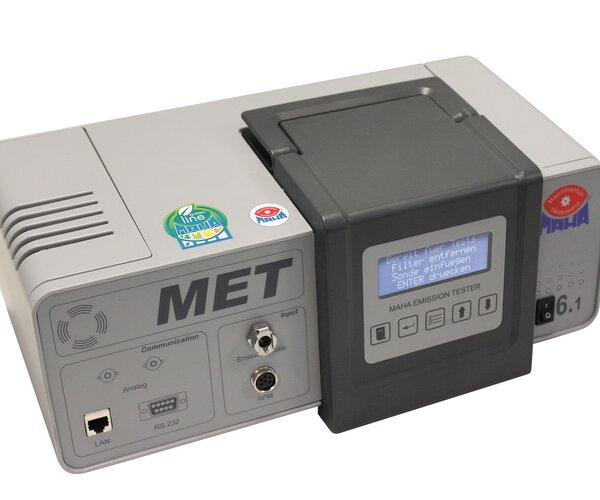

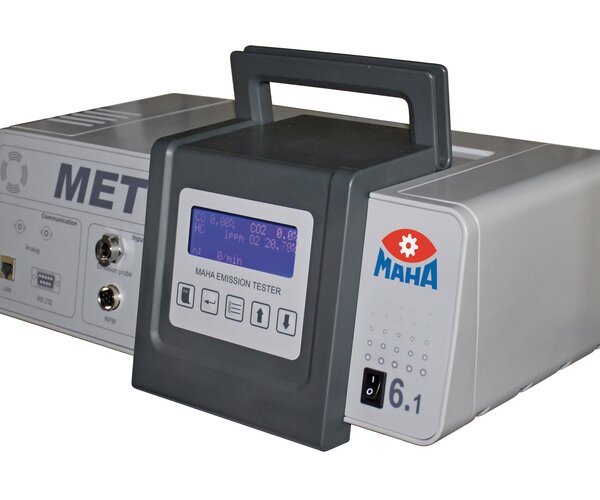

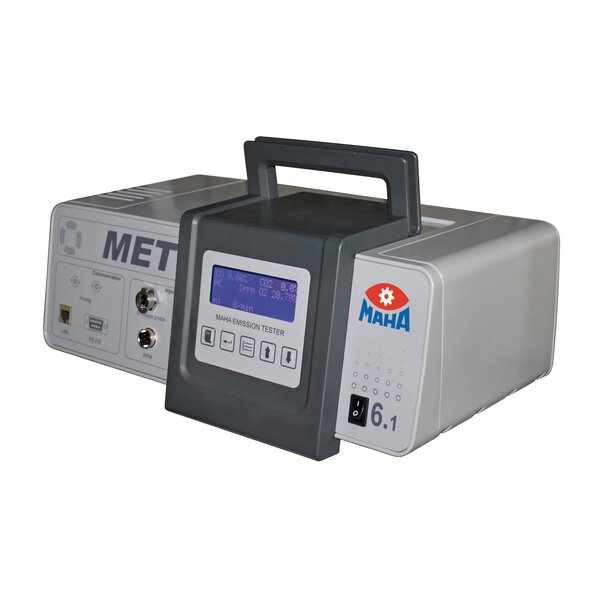

  • Basic device (gas analyser) in high-quality synthetic casing with integrated display unit and keypad
  • Steel mesh emission probe, 600 mm, probe tubing 8 m
  • LAN interface with LAN cable
  • Power supply unit 110V - 230V, 50/60Hz
  • Transparent drain hose for condensed water withcollecting tank
  • Main filter, zero filter and condensate filter
  • Electrochemical O2 sensor
  • Trigger tongs for MET 6.1 and 6.3 for inductive RPM measurement at ignition cables
  • 2 replacement filters, 2 replacement seals
  • Measurement software for continuous measurement without country-specific test procedure

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

Measurement principle:
infrared spectrometryHC, CO, CO2
Measurable gasesHC, CO, CO2, O2
Electrochemical detectionO2
Flow rate3.5 l/min
Operating conditions:
Temperature0°C to 45°C
Height-100 m to +3000 m
Power supply110-230V 50/60 Hz
On-board voltage connection10-30 V, DC
Accuracy class0 (OIML)
Dimensions (L x W x H)406 x 225 x 160 mm
Weightapprox. 4.6 kg
Measurement range / measured value resolution (max.):
CO0-15 % Vol. / 0.01
CO20-20 % Vol. / 0.01
HC0-9999 ppm / 0.1
O20-25 % Vol. / 0.01
Lambda (calculated)0.5-9.99 / 0.01
