product details / scope of delivery

Specifications:

  • Type-approval certificated under German law (PTB)

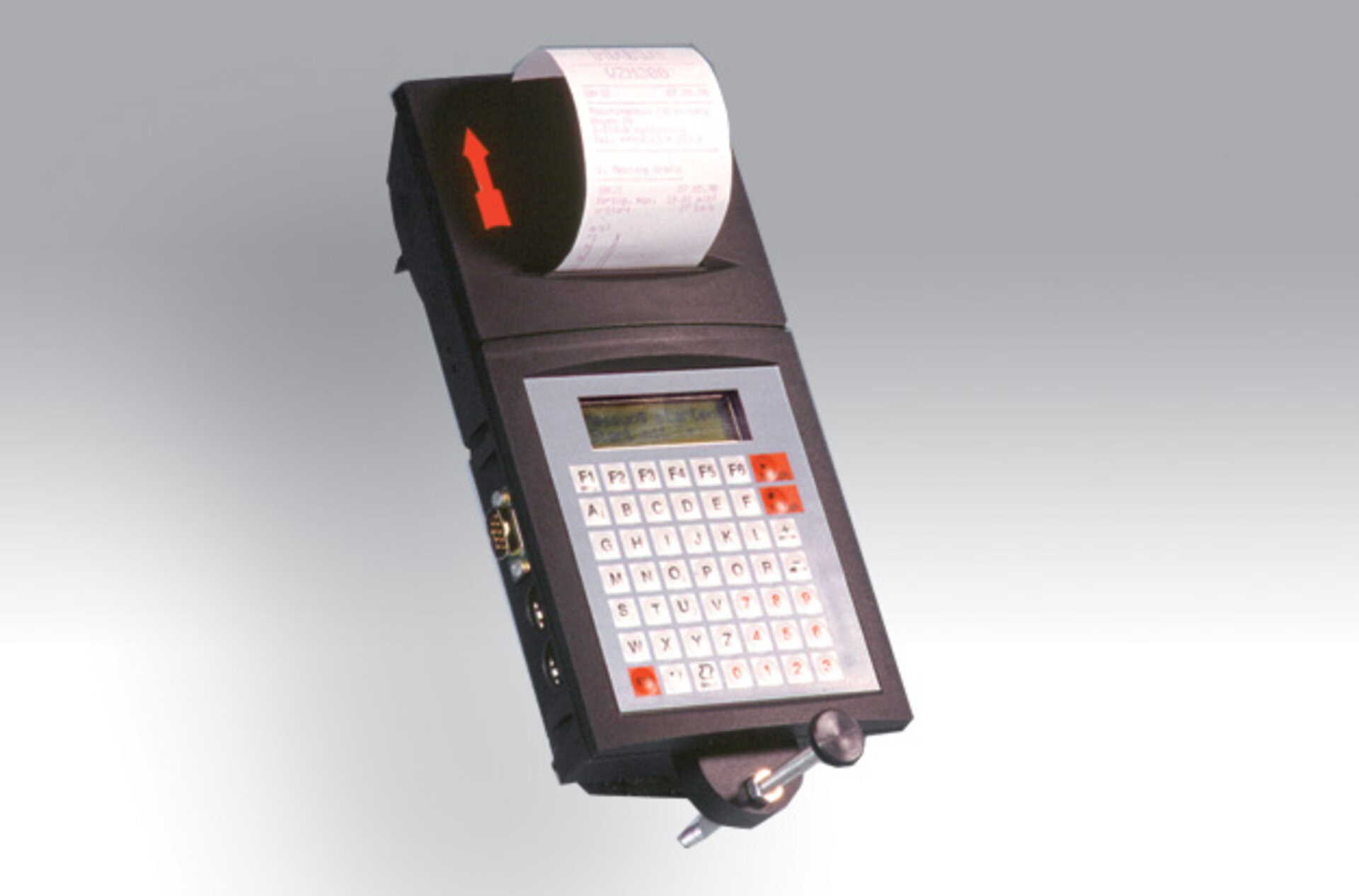

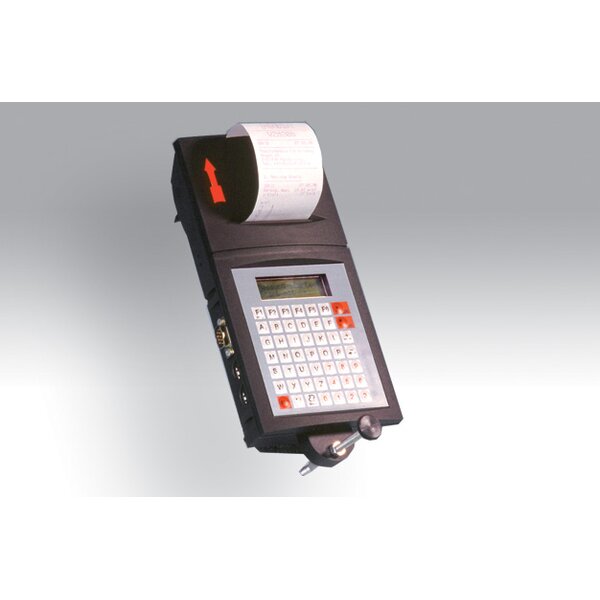

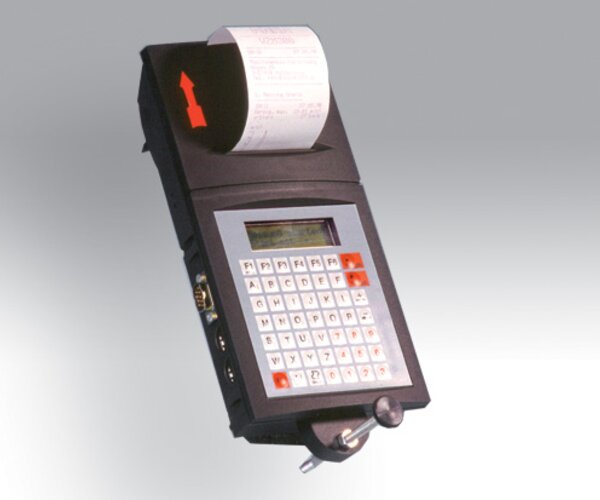

  • Printer casing with keyboard and digital display

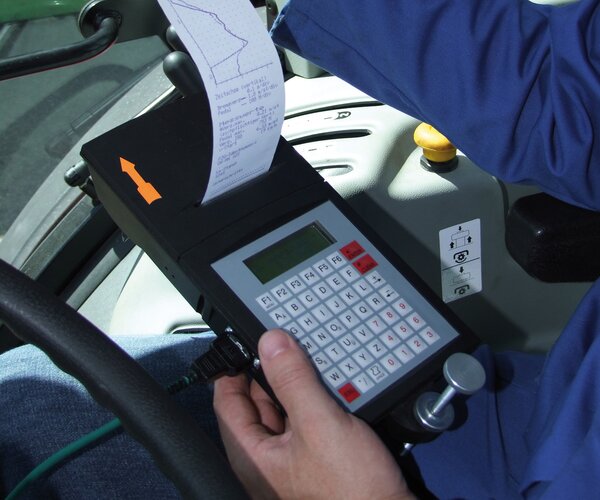

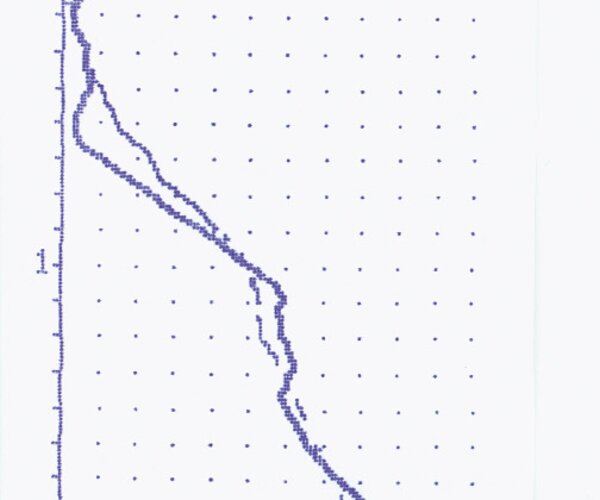

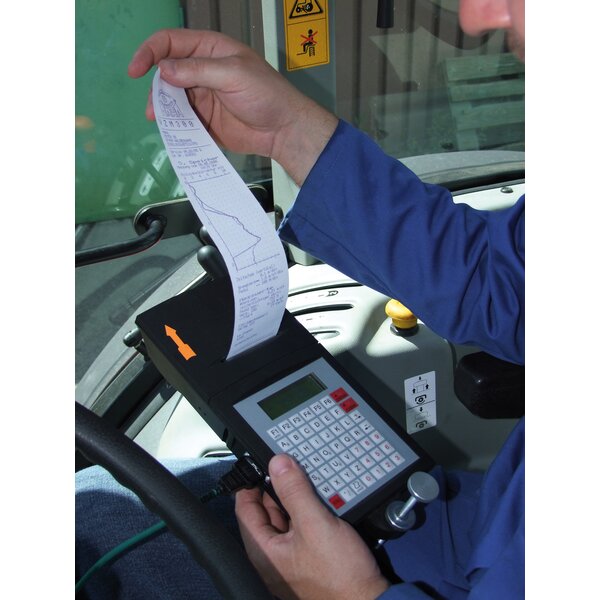

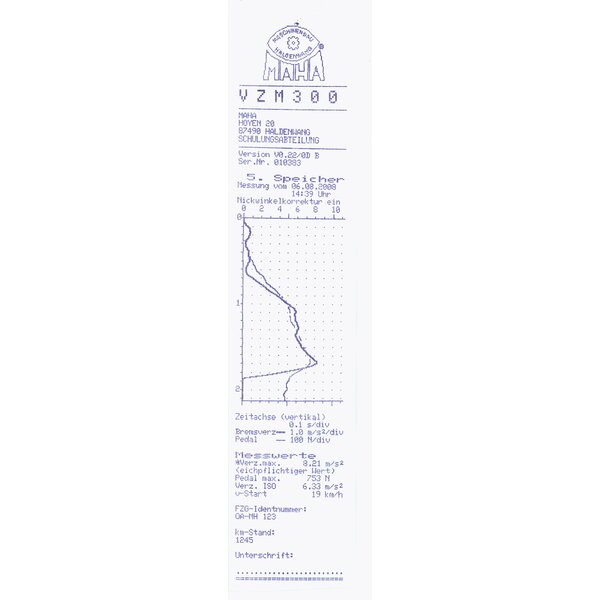

  • Fast matrix printer with graphics print-out
  • Piezo-electrical deceleration sensor
  • Control and measuring electronics

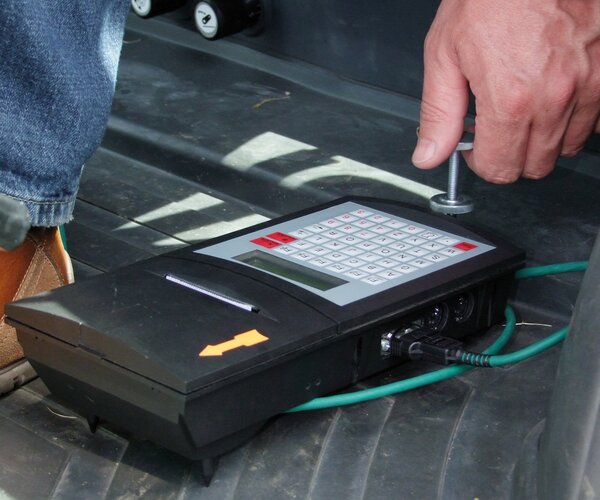

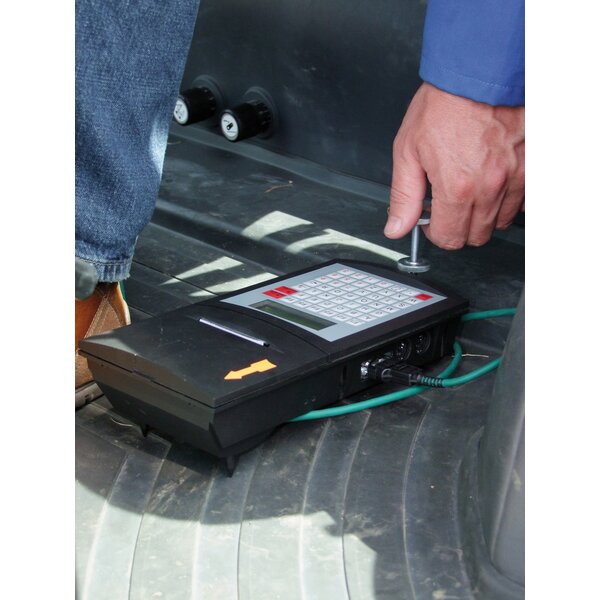

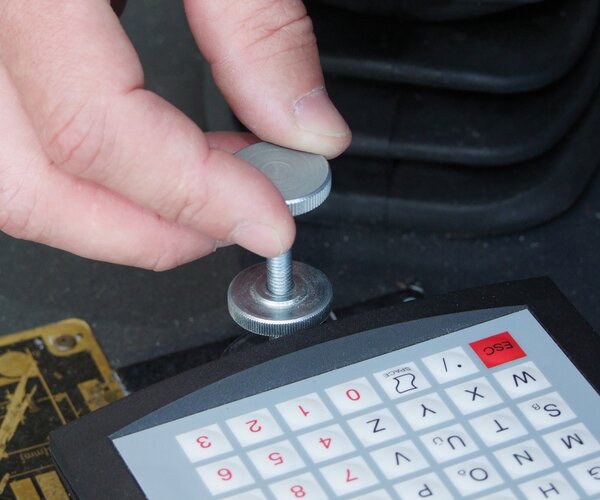

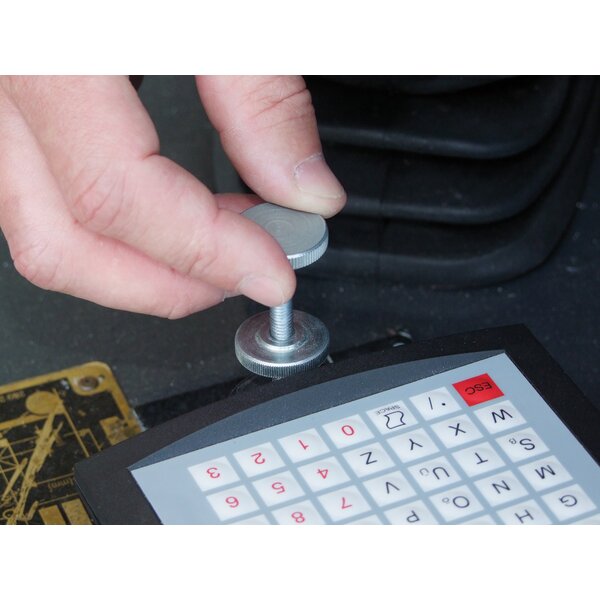

  • Electrical adjustment of equipment by means of a digital

display

  • Gyroscopic sensor for automatic compensation of testing error caused by the pitching action of the vehicle

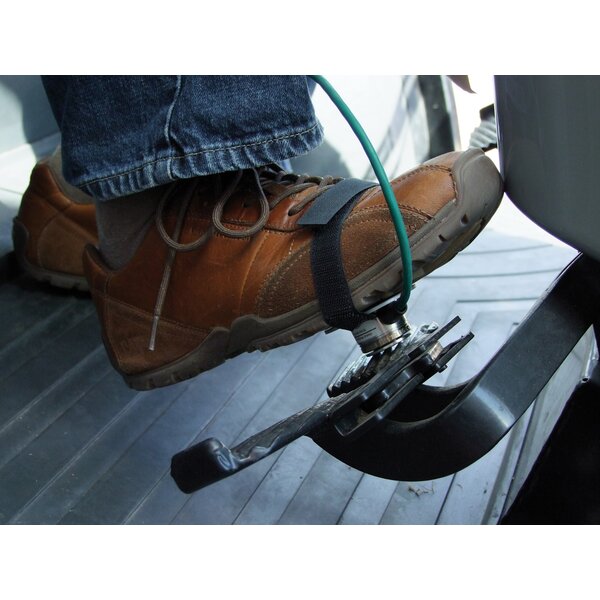

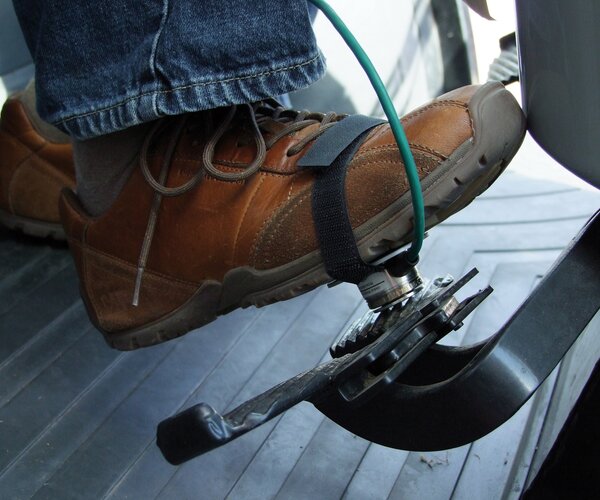

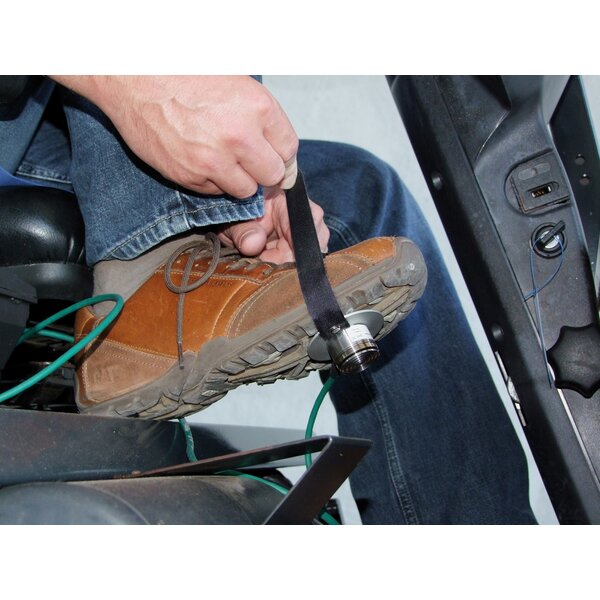

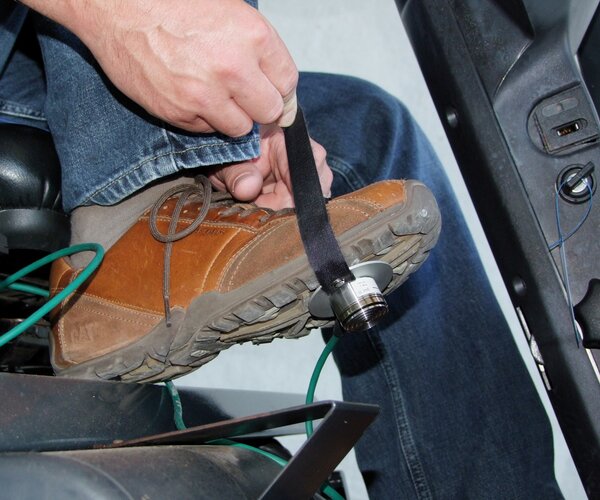

  • Connector for pedal force meter and pressure and traction converter
  • RS 232 interface to PC with data transmission to standard spreadsheet analysis software (up to Windows 7 compatible)
  • Accu-recharger
  • Spare roll of paper approx. 15 m
  • Sturdy plastic carrying case

Downloads

Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technial Data:

Measuring range: Deceleration0 - 20 m/s2
Pedal force0 - 1 kN
Tractive force0 - 20 kN
Pressure0 - 20 bar
Accuracy:<(><<)> 1% from final result
Power connection: Built-in accu6 V/1.8 Ah
Dashboard connection24/12 V DC
supply230 V/15 V AC
Weight with accu1.1 kg
Dimensions (W x H x D)124 x 55 x 245 mm
