product details / scope of delivery

Description:
Digital roller brake tester for cars and vans
up to 4.0 t axle load with 2 x 4 kW drive motors
and a max. track width of 2,200 mm

Particularly suitable as stand-alone tester

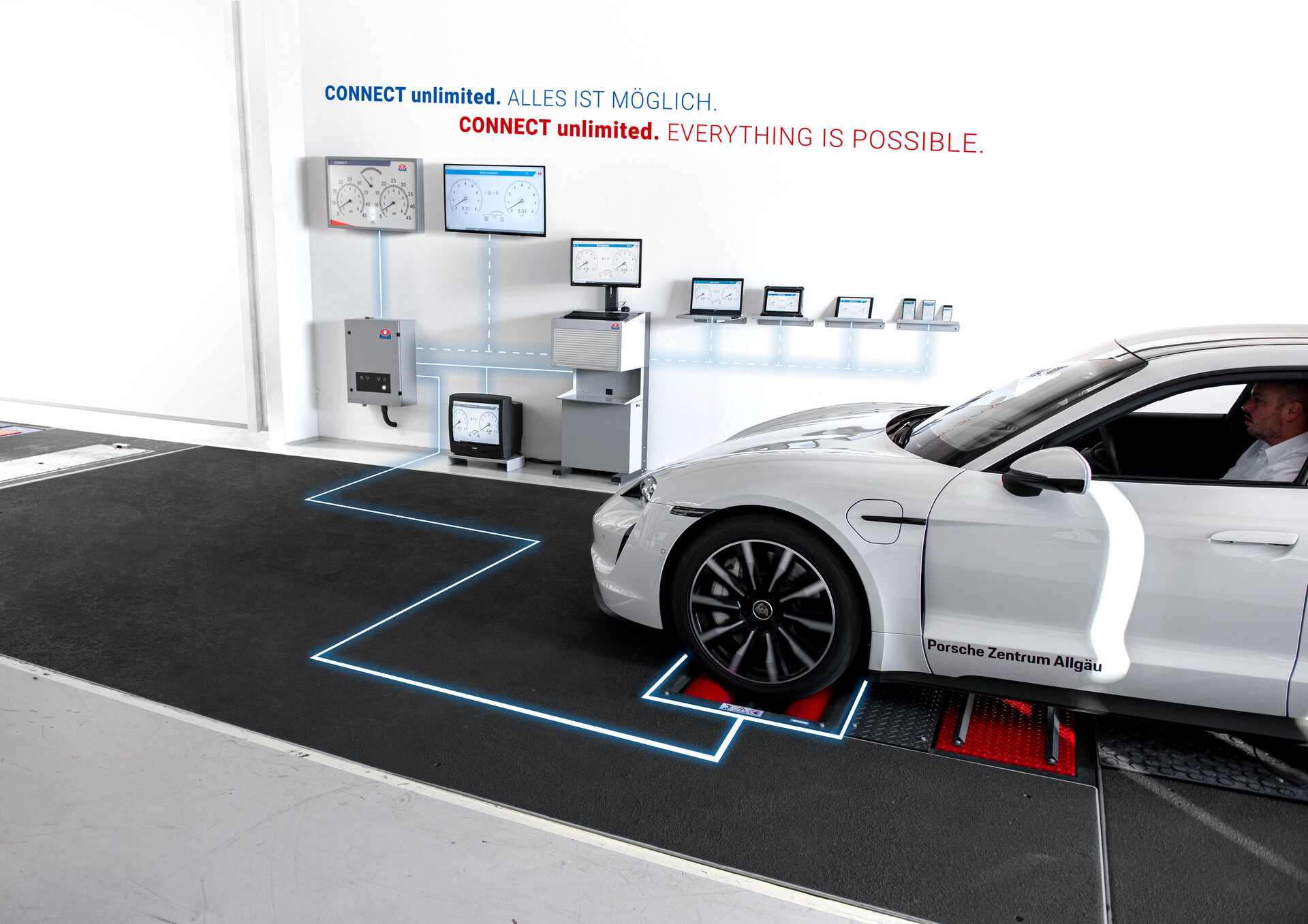

or as part of car reception and diagnostic testlanes
with high vehicle throughput and increased loads

  • Features:

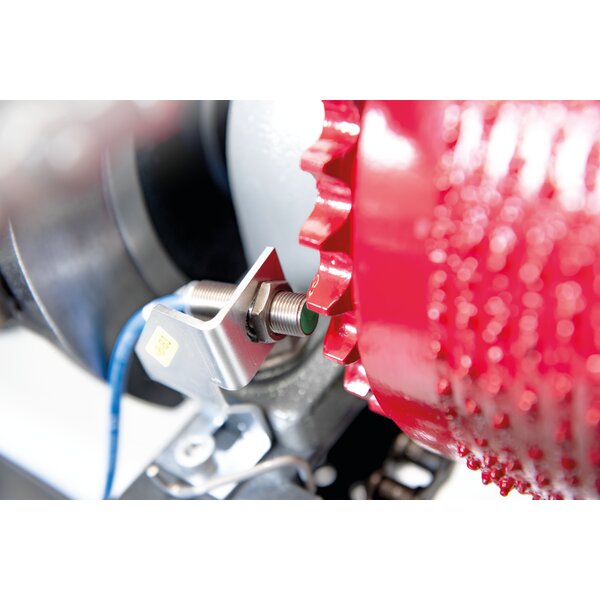

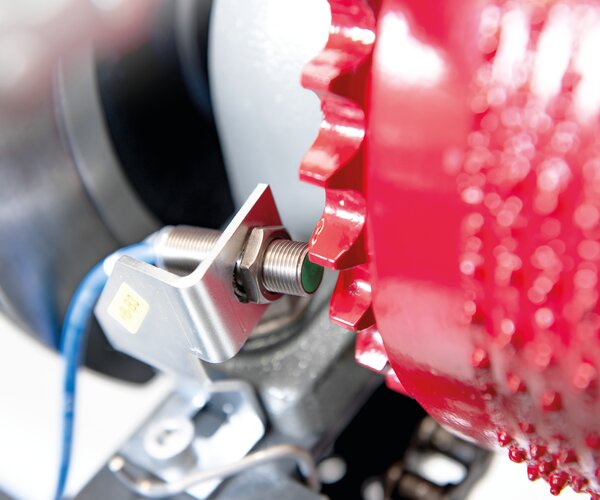

    • Real slip monitoring and automatic start-up delay as standard
    • Tyre-saving thanks to integrated automatic start-up monitoring
    • Automatic slip switch-offwith pointer stop and automatic restart
    • Automatic aid for comfortable vehicle exit with driven axles
    • Automatic switch-off after vehicle exit
    • Electronic, temperature compensated (neutral) strain gauge system
    • Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)


  • Further product advantages - for details see Sales Handbook:

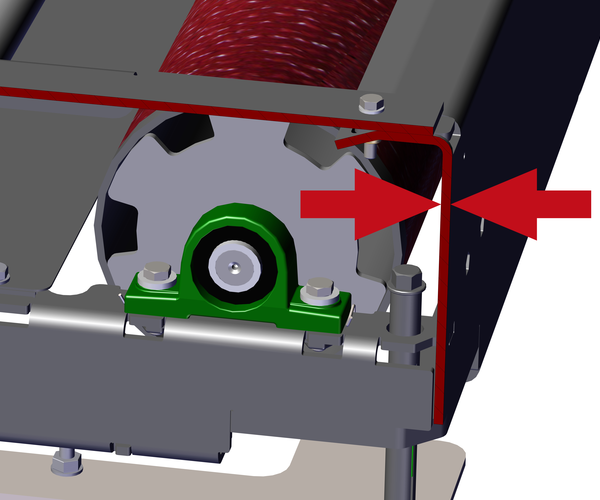

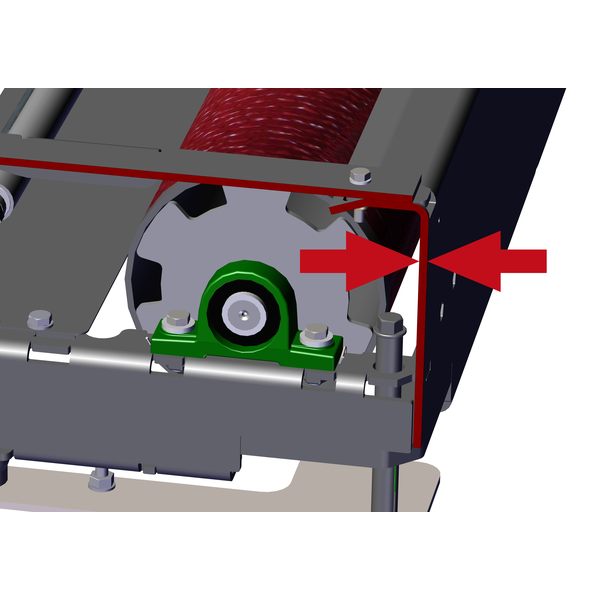

    • A sturdy and solid design

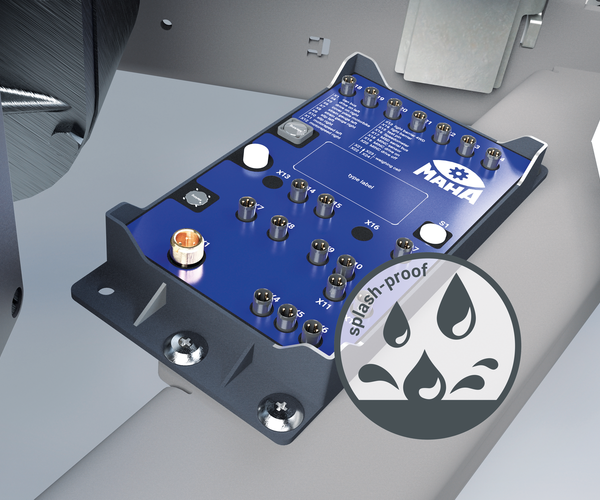

    • Interface module in the floor assembly

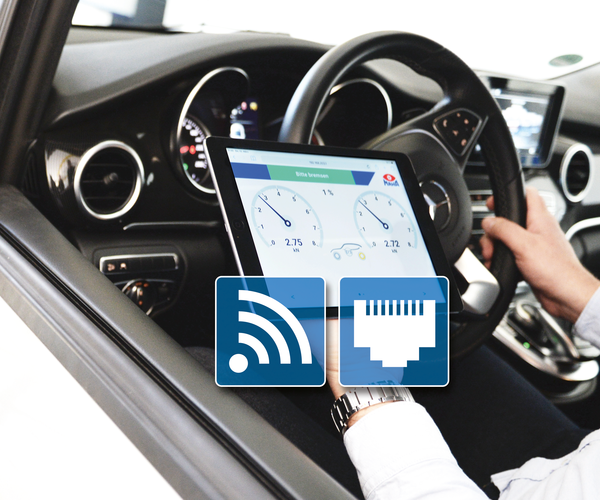

    • Secure and digital data transmission
    • Modular control box set-up

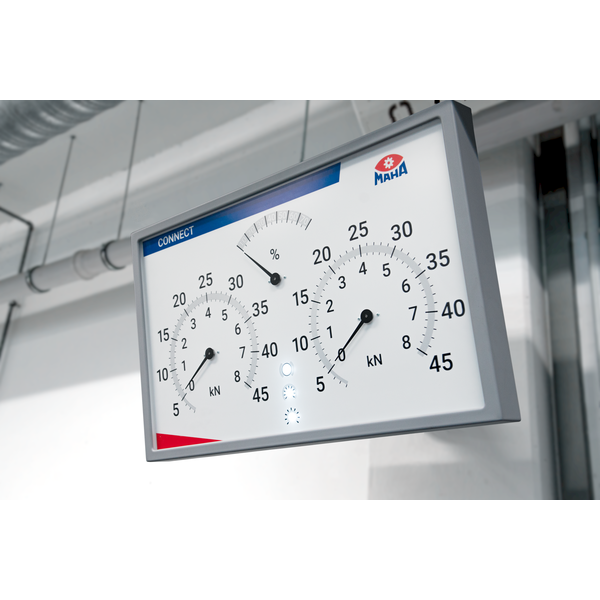

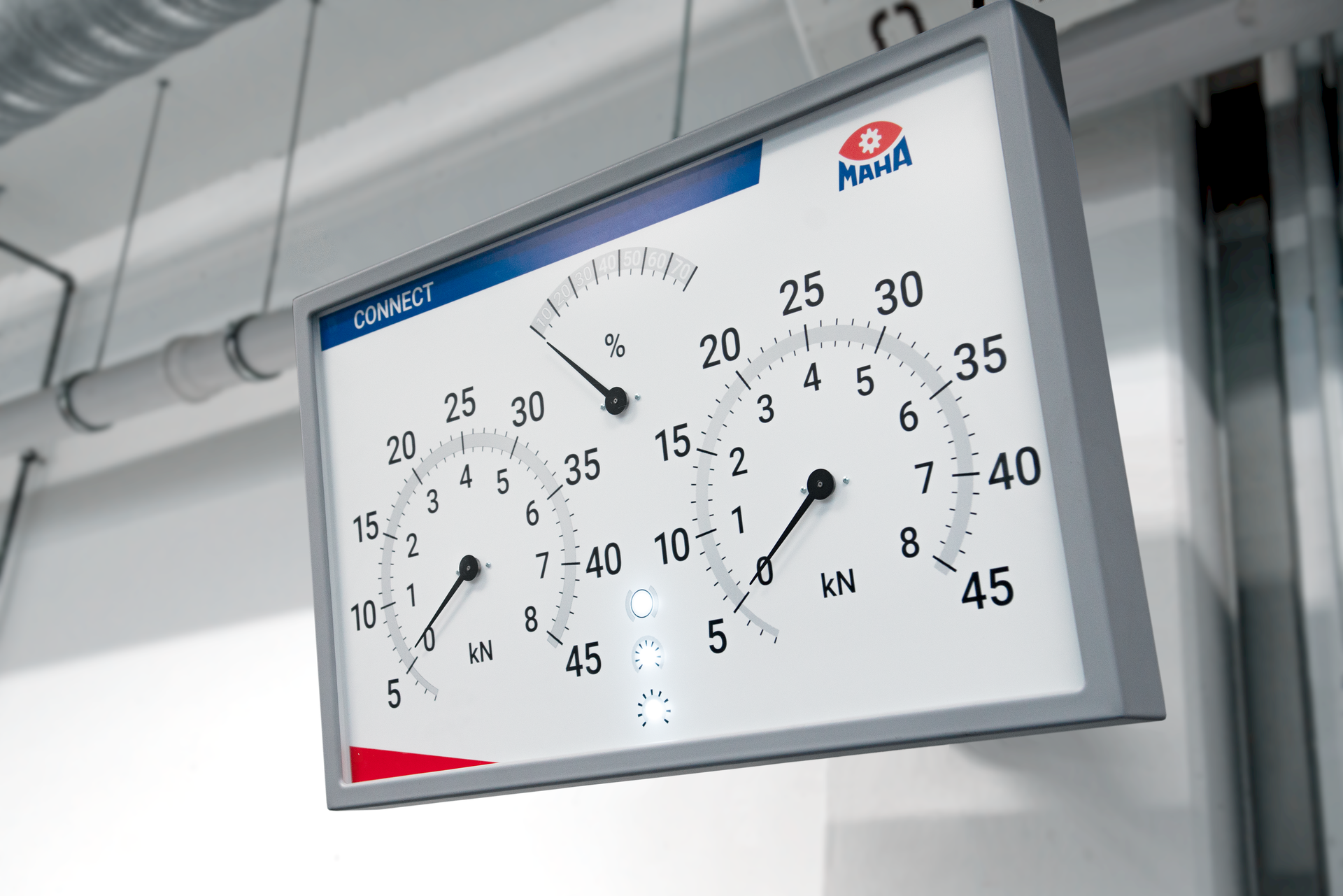

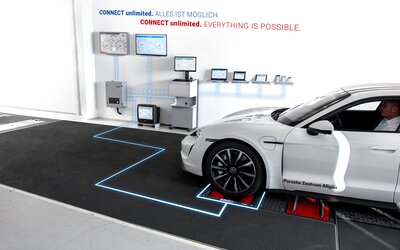

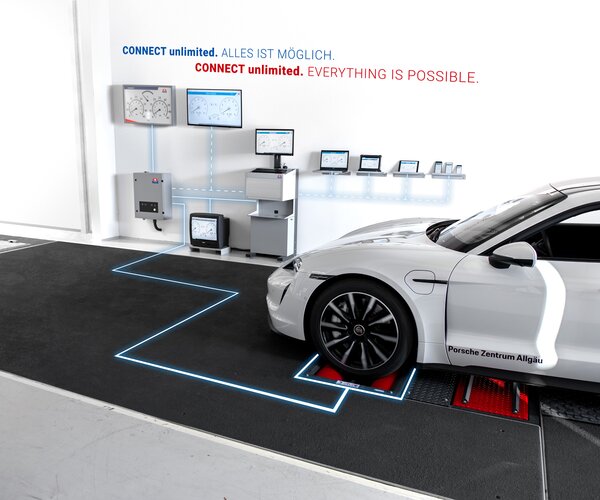

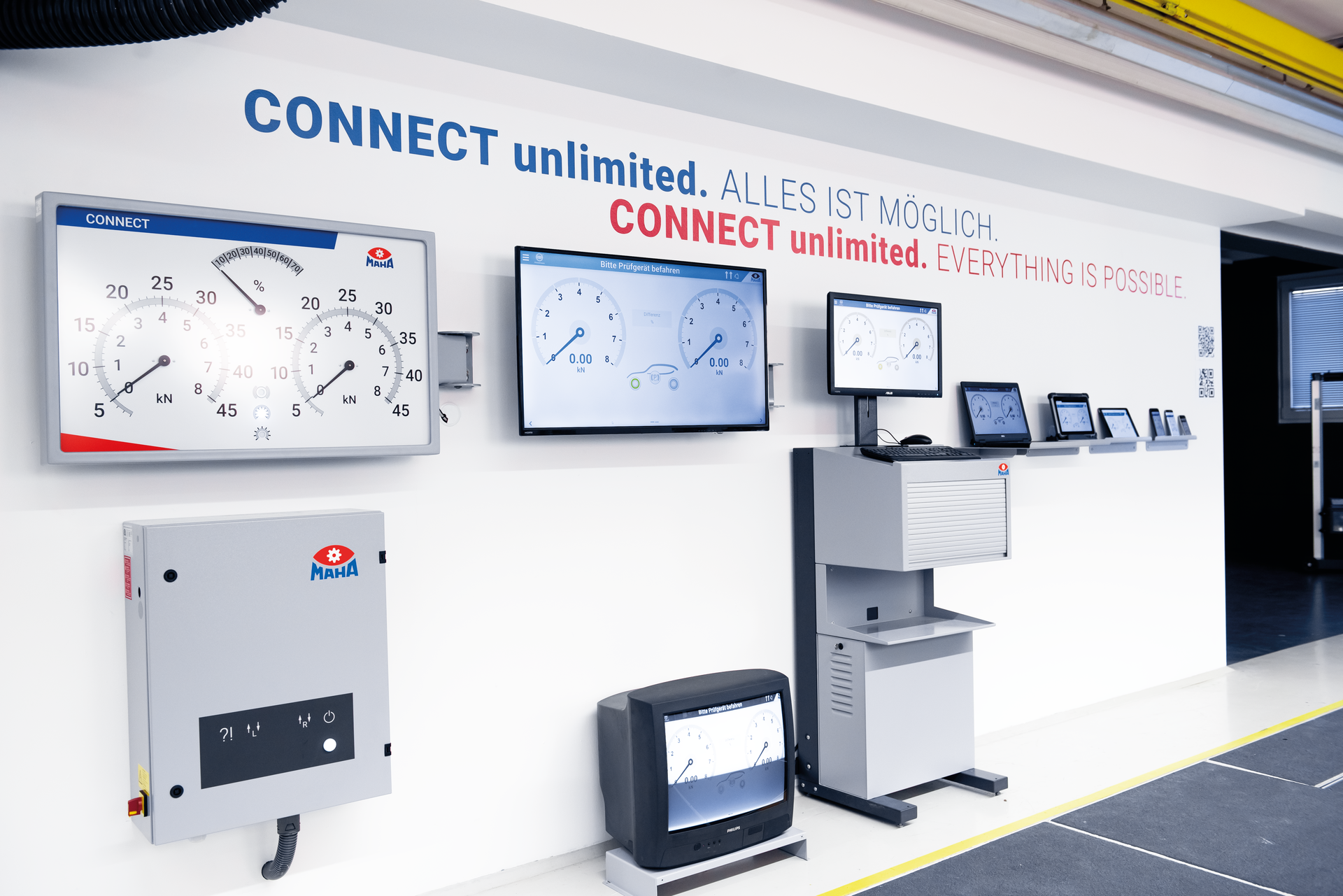

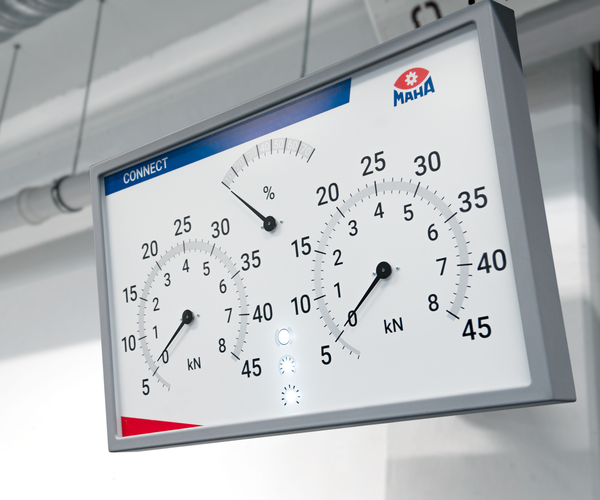

    • Multi-flexible display possibilities
    • Simple start-up
    • Simple maintenance and service
    • Safe operation
    • Optimised calibration and adjustment

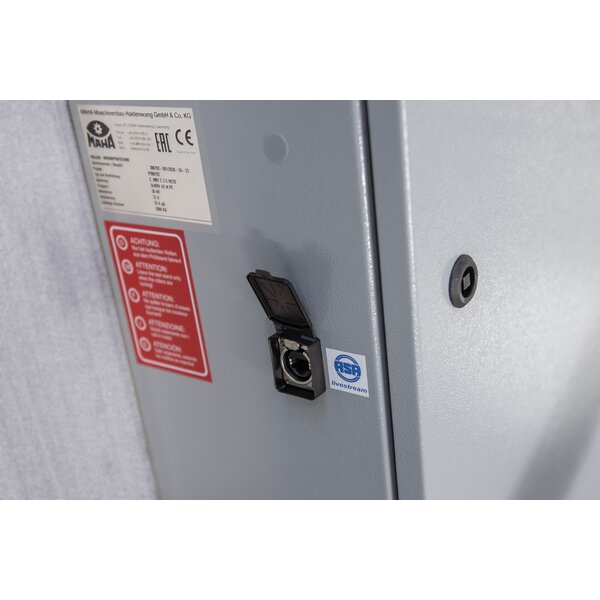

    • Integrated and expandable software and/or interfaces


Configuration:

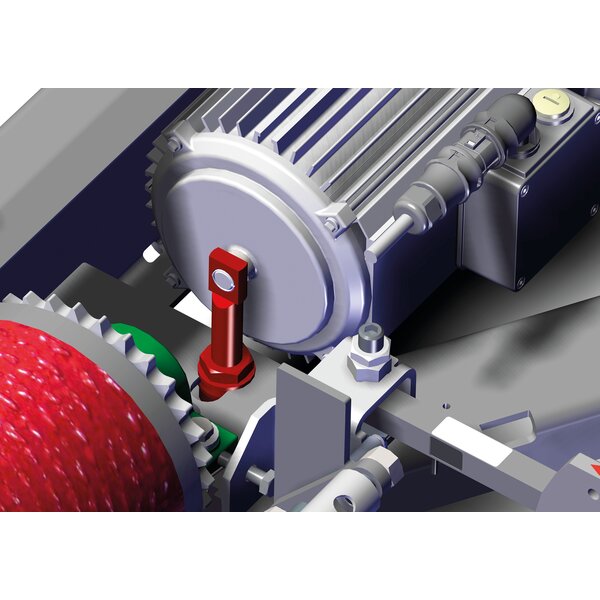

  • Roller set model C W220
  • Self-supporting, encased roller set (Compact)
  • Continuously height-adjustable (245 - 300 mm)
  • High-quality powder coating: anthracite grey, RAL 7016


Scope of delivery:

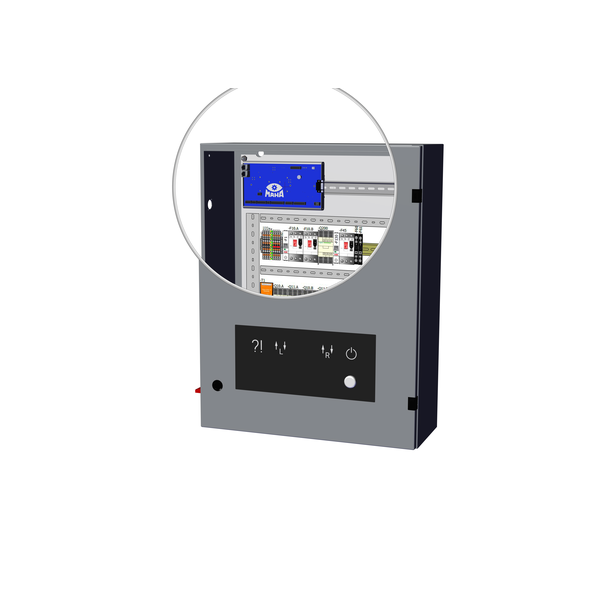

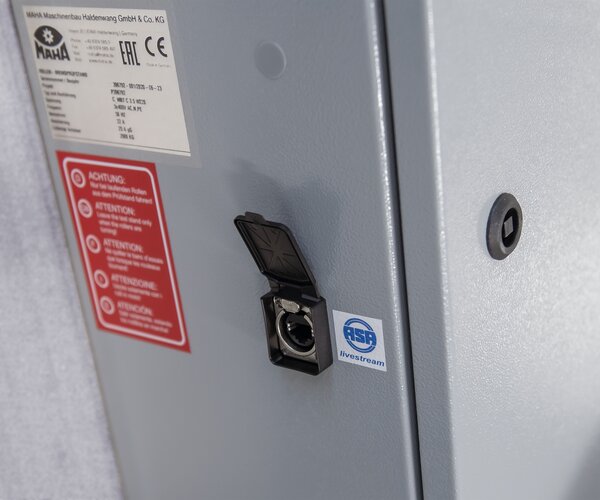

-Control box with integrated control unit

  • Roller set C_MBT C 4.0 W220 with integrated interface module

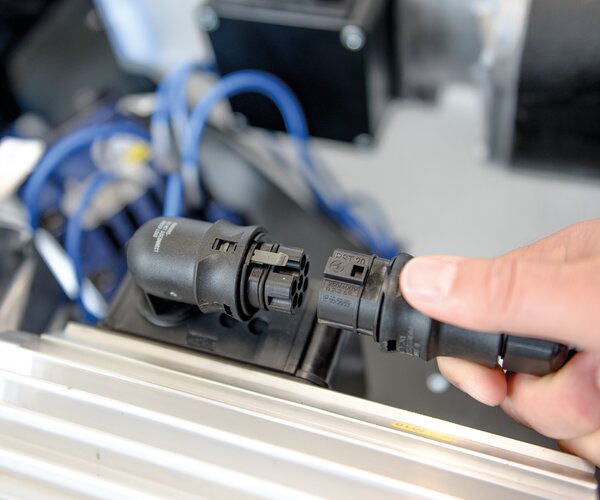

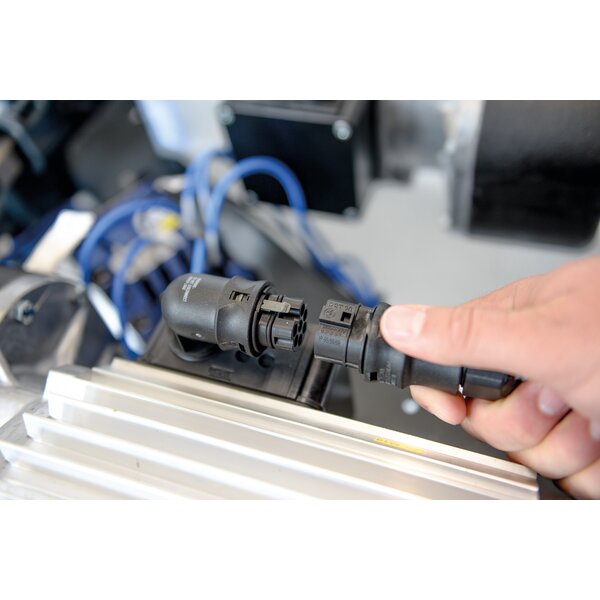

  • Pluggable cable harness 12 m


Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Axle load (traversable)4000 kg
Min. track780 mm
Max. track2200 mm
Drive power2 x 4 kW
Test speed5 km/h
Measured value display0-8 kN
Roller diameter202 mm
Roller axle distance400 mm
gG Fuse25A
Power supply3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H)2320 x 680 x 280 mm
